FM Dipole Antenna

Model:FM-DV1

Specifications:FM Dipole Antenna

Product introduction:It is used in FM broadcast transmission system to receive the radio frequency power signal output by FM transmitter and transmit the signal efficiently. Multiple antennas can be used to form a multilayer antenna array to increase the gain of the transmitt

FM-DV1(HP) Dipole Antenna


Band II dipole

Broadband 87.5~108 MHz

1.5 dBd gain

Vertical Polarization

Omni directional pattern

Stainless steel AISI 304



2-Bay Dipole Antenna

4-Bay Dipole Antenna
6-Bay Dipole Antenna
8-Bay Dipole Antenna




ELECTRICAL DATA

MECHANICAL DATA

Item

FM-DV1(HP)

Shape size (mm)

1360*1060*60

Impedance

50ohm

Weight

9kg

Frequency range

87-108MHz

Maximum wind speed

225km/h

Gain
  (relative half-wave dipole)

1.5dBd

Wind load

32kg.150Km/h

VSWR

<1.10

Mast diameter

φ50-100mm

Polarization

Vertical polarization

Material

External parts: stainless steel

Voltage standing wave ratio

<1.25(Full-bandwidth)

Internal parts: passivity aluminum

Rated input power

<1.10(Designated frequency)
  1KW( FM-DV1)
  3KW( FM-DV1HP)

Internal parts: Copper

Matrix

The antenna is especially suitable for array

Fixture: Hot-dip zinc Steel

Input interface

7/16' or 7/8'

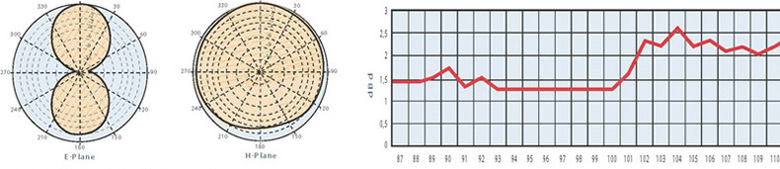

Directional Map                         Gain

FM DV1-2.jpg


 FM-DV1 Dipole FM antenna technical parameters.

Bay

Face

Gain

Weight

Height

Wind Load   (v=160 km/ h)

Linear   Array



dB

Multiples

kg

m

kg

1 K W

3 K W

5 K W

1 0 K W

1

1

1.5

1.4

9

1.4

10.1

F M -D V 1 X 1 1




2

1

4.5

2.8

18

3.7

20.2

F M -D V 1 X 2 1

F M -D V 1 X 2 3



3

1

6.3

4.2

27

6.0

30.3

F M -D V 1 X 3 1

F M -D V 1 X 3 3

F M -D V 1 X 3 5


4

1

7.5

5.6

36

8.3

40.4

F M -D V 1 X 4 1

F M -D V 1 X 4 3

F M -D V 1 X 4 5

F M -D V 1 X 4 1 0

6

1

9.3

8.4

54

12.9

60.6

F M -D V 1 X 6 1

F M -D V 1 X 6 3

F M -D V 1 X 6 5

F M -D V 1 X 6 1 0

8

1

10.5

11.3

72

17.5

80.8

F M -D V 1 X 8 1

F M -D V 1 X 8 3

F M -D V 1 X 8 5

F M -D V 1 X 8 1 0
