Directional FM Dipole Antenna

Model：FM-DV2

Specifications：Directional FM Dipole Antenna

Product introduction：This antenna is a directional antenna of FM-DV1. Larger radiation intensity can be obtained in the specified direction. The antenna array can be composed of multi-element antennas to obtain greater radiation gain.

Technical

Order

Product description

FM-DV2 Dipole Antenna

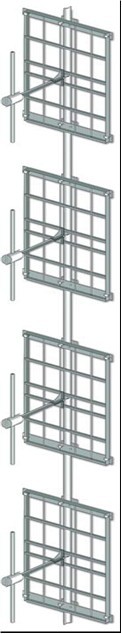

FM DV2-1.jpg

Electrical Data

Frequency range 87.5~108MHz

Impedance 50ohm

Connectors L27 female or 7/8'

Max Power 1KW(7/16' or 7/8')-3KW(7/8')

VSWR <1.25

Polarization Horizontal or Vertical

Gain 4.5dB(referred to half-wave dipole)

Half power beam width E plane 320,H plane 580

Lightning protection All metal parts DC grounded

Mechanical Data

Dimensions	200014001075mm
Weight	32kg ref. stainless steel
Wind surface	0.13m2 (side)
Wind surface	0.56m2 (front)
Wind load	108kg(front-wind speed at 160km/h)
Maximum wind velocity	200km/h
Materials	Reflector: hot dip. galvanized
	Dipole: stainless steel
	Internal parts: passivity aluminum
	Radome: fiberglass (Option)
Mounting	With special pipe clamps 50~110mm dia.

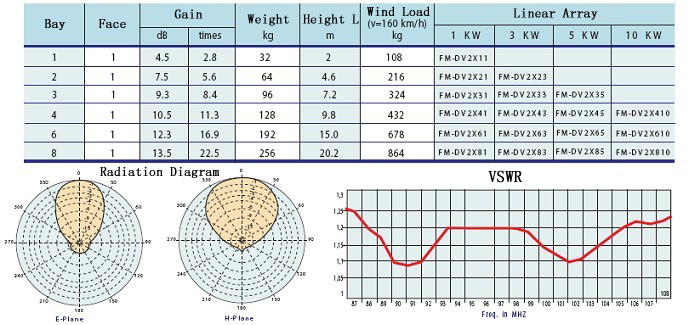

FM DV2-2副本.jpg
