UHF-Slot TV Antenna

Model:UHF-Slot

Specifications:Professional for TV Station

Product introduction:UHF-Slot TV Antenna

UHF-Slot Television Antenna


●Frequency range 470-860MHz.

●High-gain design 13dBd-18dBd.

●Horizontal polarization suitable for high building concentration area coverage.

●Compatible mobile digital TV application.

●Omni-directional radiation field, it can be directional radiation according to requirements.

●It adopts quality electro silvering copper to reduce the high-frequency loss.

●Adopting anti-aging high-strength glass fiber reinforced plastics cover for tight seal and sheltering from rain and snow.

●To conduct zero point padding and lobe downwardness to achieve the best coverage effect.

●It occupies little space; flexible installation is suitable for spanning over the top of the tower or the side of the tower.







Electrical Specification

Mechanical Specification

Frequency range

470-860MHz

Size(mm)

φ250x2000~12000

Input impedance

50Ω

Total weight

57Kg(Omni-directional)

79Kg(Directional)

Input interface

7/16”;   7/8”; 1-5/8”; 3-1/8”

Wind load

750N(Wind velocity 150Km/h)

Maximum power capacity

1KW/5KW/10KW

Safety factor

2(Wind velocity 225Km/h)

VSWR(Designated  frequency)

1.10

Material

Reflector board:  Stainless steel

Polarization ways

Horizontal Polarization

Radiator: Copper

Gain

13-18dB

Inner conductor:   Copper (coating   silver)

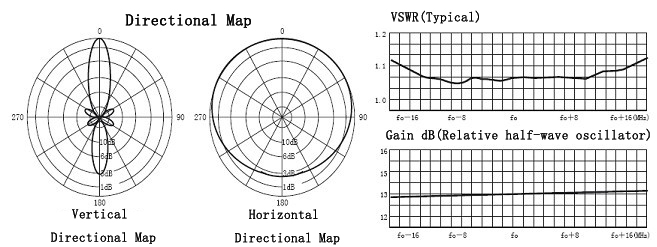

Half power angle

E-map ±7

H-map ±150

Protection cover: FRP

Lightning protection

DC Ground

Installation mode

Independence/hung in   side
