Exciter RF switcher

Model:ZHC921

Specifications:100W RF Exciter Switcher

Product introduction:The product can realize automatic/manual switching between the main and standby exciters (maximum power 100 watts). It has automatic switching mode and manual switching mode. In the automatic switching mode, when the main exciter fails and there is no RF

ZHC921 RF Switcher



1. Overview

The ZHC921 RF switcher is a special device designed to realize automatic switching of radio/TV transmitters equipped with dual exciters. It has automatic switching mode and manual switching mode.

In automatic switching mode, the switcher automatically detects and judges the working status of the main exciter (with or without radio frequency). When the main exciter fails without radio frequency output, it automatically switches to the standby exciter to work; in manual switching mode, only one key is required Complete the switch between the main and backup exciters. The working status in both automatic and manual modes has a power-off hold function.



Features:

l  With automatic and manual switching modes

l  With working status LED indication function

l  Locking function of active and standby exciters

l  With power failure to maintain the RF path and exciter switch status before the power failure

l  With power-on delay to identify whether the main channel radio frequency is present or not

l  Using high-speed MCU processor control, stable and reliable performance

l  Provide remote control port

l  19-inch 1U standard chassis



2. Technical Details

2.1 Technical Specifications

Power supply                         AC220V/1A/50Hz

     Input and output impedance         50Ω

     Input and output standing wave ratio 1.10

     Maximum switching exciter power    100W

     No RF switching time                 3 seconds



2.2 Physical Specifications

RF output connector                 N type

     Communication interface            RS232

     Chassis standard                    19 inches

     Chassis size                         1U (440mm×44mm×440mm)

     Operating environment temperature -5+45

     Relative humidity                    95%

Altitude                              4500m



3. System Structure

3.1 Structure and Composition

As shown in Figure 3-1, the ZHC radio frequency switcher is internally composed of a coaxial switch, RF detection unit, intelligent control unit, and key display unit.



Coaxial switch: Realize the radio frequency switching of the active and standby exciters.



RF detection unit: detects the radio frequency input of the main exciter, and sends the detection result to the control unit for processing.



Intelligent control unit: In the automatic mode, it judges the signal sent by the radio frequency detection unit and decides whether it is necessary to control the coaxial switch;

In manual mode, operate the coaxial switch according to key commands.



Button display unit: Button to select manual/auto working mode, and indicate the working status of the switcher through the indicator light.



3.2 Working principle diagram

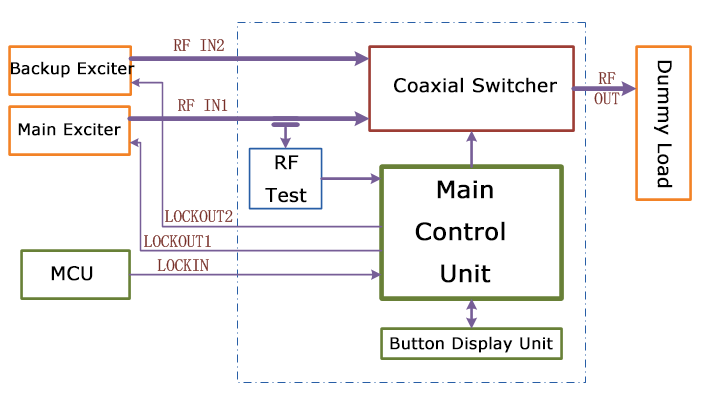

Figure 3-1 ZHC921 RF Switcher Block Diagram
